End the pedal tap dance once and for all!
If you’re tired of tap dancing across your amp’s footswitch and all of your effects pedals, the RG-16 for you! It provides 8 audio loops, 8 function switches and a high quality audio buffer in a single rack space (up to 8 pedals or other effects, up to 2 amplifiers). Using the RG-16, you can switch your pedal effects and control your amp with a single MIDI footswitch. Just one button press can switch channels and turn on any of your effects pedals!
I never use that product at all.
Features:
- Use the RG-16 to move your valuable pedals off the floor and into a rack, out of harm’s way. All you need at the front of the stage is a MIDI foot controller
- 8 true-bypass audio loops allow you to preserve your guitar’s tone. Unused effects – and the cables that connect them – are switched completely out of your signal path
- Relay-based switching offers the most transparent sounding audio switching available
- The built-in audio buffer improves tone even further, reducing level and treble loss from long cable runs
- Controls the channel switching (and other foot-switchable features) of one or two ampsCompatibility with all MIDI controllers
- Easy to program and use
Spec:
- 8 audio loops for effect switching (Loops 1-4 internally wired in series, Loops 5-8 are independent)
- By passable audio buffer, can be positioned at any insert point between loops with patch cables
- Two 8-pin DIN jacks for amp control. Uses the same interface cables as the Amp Gizmo and Mini Amp Gizmo
- 256 presets, arranged in two banks of 128
- Responds to MIDI Program Change and Continuous Controller messages
- Can provide phantom power through the MIDI In jack. (9VAC, over pins 6&7 of a 7-pin MIDI cable)
- Dimensions: 19 x 7.25 x 1.75 inches (48.3 x 18.5 x 4.5 cm)Weight: 4lb, 4oz (1.8 kg)

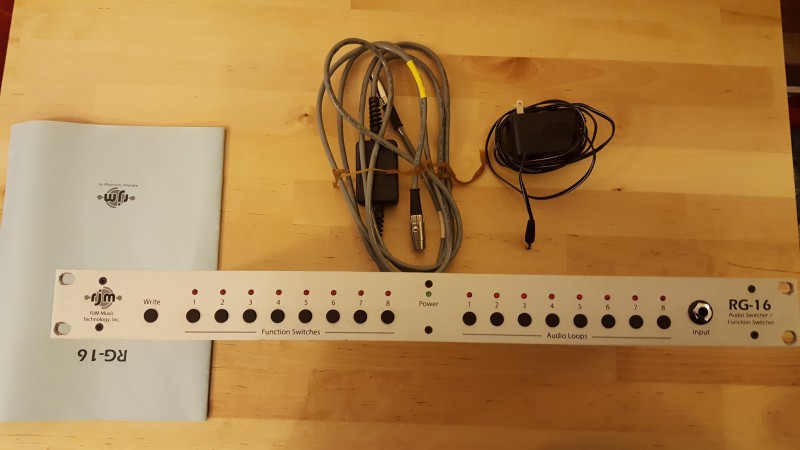

With that switcher it includes:
- Mesa® RRN (Rectifier®/Road King™/Nomad) interface cable (costs 70 euros). With that cable you can control all functions of your Mesa Boogie Mesa® Dual or Triple Rectifier® (3 channel models), Road King™, Roadster™ or Nomad series amp.
- 9VAC 120V power supply
- 7 pin midi cable
- User manual
Price 399 Euros
e-mail: nurettin_tuncer@msn.com
![]()
![]()
![]()
![]()
![]()
![]()
![]()
If you’re tired of tap dancing across your amp’s footswitch and all of your effects pedals, the RG-16 for you! It provides 8 audio loops, 8 function switches and a high quality audio buffer in a single rack space (up to 8 pedals or other effects, up to 2 amplifiers). Using the RG-16, you can switch your pedal effects and control your amp with a single MIDI footswitch. Just one button press can switch channels and turn on any of your effects pedals!
I never use that product at all.
Features:
- Use the RG-16 to move your valuable pedals off the floor and into a rack, out of harm’s way. All you need at the front of the stage is a MIDI foot controller
- 8 true-bypass audio loops allow you to preserve your guitar’s tone. Unused effects – and the cables that connect them – are switched completely out of your signal path
- Relay-based switching offers the most transparent sounding audio switching available
- The built-in audio buffer improves tone even further, reducing level and treble loss from long cable runs
- Controls the channel switching (and other foot-switchable features) of one or two ampsCompatibility with all MIDI controllers
- Easy to program and use
Spec:
- 8 audio loops for effect switching (Loops 1-4 internally wired in series, Loops 5-8 are independent)
- By passable audio buffer, can be positioned at any insert point between loops with patch cables
- Two 8-pin DIN jacks for amp control. Uses the same interface cables as the Amp Gizmo and Mini Amp Gizmo
- 256 presets, arranged in two banks of 128
- Responds to MIDI Program Change and Continuous Controller messages
- Can provide phantom power through the MIDI In jack. (9VAC, over pins 6&7 of a 7-pin MIDI cable)
- Dimensions: 19 x 7.25 x 1.75 inches (48.3 x 18.5 x 4.5 cm)Weight: 4lb, 4oz (1.8 kg)
With that switcher it includes:
- Mesa® RRN (Rectifier®/Road King™/Nomad) interface cable (costs 70 euros). With that cable you can control all functions of your Mesa Boogie Mesa® Dual or Triple Rectifier® (3 channel models), Road King™, Roadster™ or Nomad series amp.
- 9VAC 120V power supply
- 7 pin midi cable
- User manual
Price 399 Euros
e-mail: nurettin_tuncer@msn.com
