J Rockett Mark Sampson Revolver Vibe/Boost/Splitter Stéréo

  • Publié dans pédales et effets
Auteur Message
djouby
Vintage Top utilisateur


Inscrit le: 10 Feb 04
Localisation: Loiret

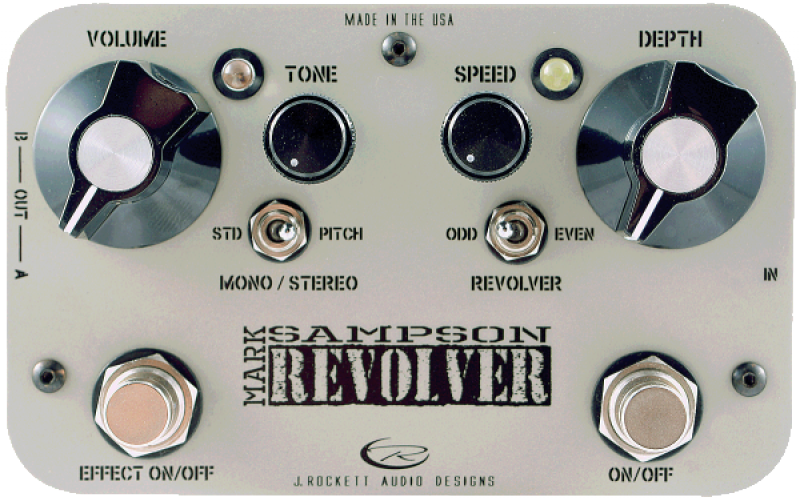

J Rockett Mark Sampson Revolver Stéréo

Une pédale surprenante !

Vibe/Boost/Splitter, un rendu en stéréo exceptionnel
État neuf, boite d’origine
190 euros FDP in

multi-dimensional vibe and trem sounds, and a juicy boost.
Photos sur demande






VOLUME - THE VOLUME CONTROL IS VERY POWERFUL AND DRIVES PRETTY HARD PRETTY EARLY. THIS ALLOWS YOU TO HIT THE FRONT OF
AN AMP OR PEDAL TO GET GRAINY LESLIE TYPE SOUNDS.

TONE - THE TONE CONTROL IS A VERY EFFECTIVE EQ GOING FROM DARK TO A VERY CHIMEY BRIGHT. IT IS GREAT TO CREATE THAT
“SAMPSON” CHIME BEFORE THE VIBE OR TREM IS ENGAGED.

STD/PITCH AND MONO/STEREO - DEPENDING ON HOW YOU HAVE THE PEDAL SETUP UP THIS SWITCH HAS TWO FUNCTIONS. IF IT IS JUST
IN BOOST MODE THIS SWITCH WILL CHANGE IT FROM MONO TO STEREO SINCE THE PEDAL IS A STEREO SPLITTER. IF YOU DO HAVE THE
EFFECT ENGAGED IT WILL CHANGE IT FROM A STANDARD VIBE TO A PITCH SHIFTING VIBE. WHEN IT IS IN “PITCH” MODE YOU WILL
REALLY HEAR THE STEREO PLAY BETWEEN THE TWO SIDES DEPENDING ON THE INTENSITY OF THE DEPTH. (SEE DEPTH CONTROL)

EFFECT ON/OFF - THE OVERALL PEDAL CAN BE TURNED ON AS A STEREO SPLITTER OR MONO BOOST. WITH THE EFFECT ON/OFF YOU
HAVE THE CHOICE TO USE THE VIBE EFFECT OR NOT BUT STILL HAVE A STEREO SPLITTER/BOOST OPTION. ONCE THE EFFECT IS ENGAGED
YOU CAN TWEAK THE PARAMETERS AS DESCRIBED IN THE STD/PITCH SECTION.

SPEED - CHANGES THE SPEED OF THE VIBE FROM SLOW TO FAST.ODD/EVEN - WHEN IN STEREO MODE AND WITH THE VIBE EFFECT
ON THIS SWITCH ALLOWS YOU TO CHANGE BETWEEN AN ALTERNATING L/R VIBE EFFECT IN ODD MODE OR A SIMULTANEOUS
PULSE FROM BOTH SIDES IN EVEN MODE. IT DOES TAKE A FEW SECONDS TO CATCH UP IN EITHER SETTING AND IS SUBTLE.

DEPTH - THIS ALLOWS YOU TO SET THE INTENSITY OF THE VIBE EFFECT. WHEN SET TO FULL INTENSITY YOU WILL REALLY HEAR THE INTERPLAY
OF EACH SIDE GIVING YOU A DIZZYING STEREO EFFECT. WITH THE DEPTH KNOB SET TO VERY LOW INTENSITY IT CREATES A BEAUTIFUL
SUBTLE VIBE THAT IS MOODY AND LUSH.

ON/OFF - ENGAGES THE PEDAL AND DEPENDING ON IF YOU HAVE THE VIBE EFFECT ON OR NOT THIS WILL ENGAGE THE MONO/STEREO
BOOST OR THE VIBE EFFECT.

NOTE: EACH OUTPUT SENDS A DIFFERENT TYPE OF VIBE AND EACH CAN BE USED AS A MONO OUTPUT. OUTPUT “A” WILL GIVE YOU
A PITCH/WAH TYPE VIBE AND OUTPUT “B’ WILL GIVE YOU A MORE STANDARD VIBE WITH VERY SLIGHT PITCH. THE INTERPLAY OF THE
TWO OUTPUTS IS WHAT CREATES SUCH A DIZZYING EFFECT.

NOTE: THIS PEDAL CAN ONLY UTILIZE A STANDARD DC 9V POWER SUPPLY WITH A NEGATIVE TIP AND POSITIVE SLEEVE (TYPICAL BOSS
TYPE ADAPTOR). SEE ILLUSTRATION BELOW. THERE IS NO OPTION FOR A 9V BATTERY BECAUSE IT WOULD DRAIN THE BATTERY TOO
QUICKLY.

NOTE: THE RED LED WILL GLOW MORE BRIGHTLY AS THE DEPTH KNOB IS TURNED UP TO DISPLAY THE INTENSITY OF THE VIBE. THE RED
LED ALSO PULSES AT THE RATE OF THE SPEED CONTROL SETTING.


Le manuel :

https://rockettpedals.com/wp-content/uploads/2014/03/JRAD-Revolver-Man[...].pdf
