djouby
  • #1
  • Publié par
    djouby
    le 23 May 19, 07:38
***VENDUE***

Bonjour
en vente superbe pédale de reverb

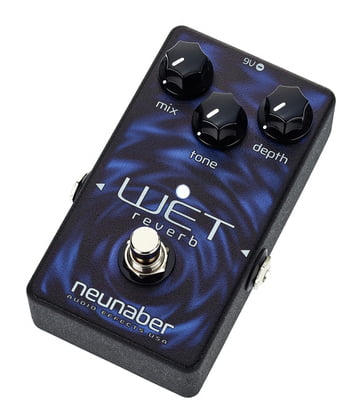

Neunaber Wet V4
Excellent état, avec boite et goodies d’origine.
160 euros FDP in
Pas d’échange
Photos sur demande
bonne journée









La Wet Reverb est une pédale de reverb. Cette nouvelle version est disponible en 2 versions: V4 qui a un bypass bufferisé et V4b ($20 plus cher) qui a un switch interne pour choisir entre un true bypass et un bypass bufferisé. Il y a 2 différences par rapport à la V3. Celle qui saute aux yeux est l'ajout d'un réglage de tonalité. L'autre nouveauté est qu'il y a 3 modes de bypass selon si vous désirez ou non que la réverb disparaisse progressivement (trails).

General

2 versions available
V4: Buffered
V4tb: True Bypass/Buffered (internal switch) (add $20)
Controls
Mix knob:
Full counter-clockwise is 100% dry
Full clockwise is 100% reverb, typically used with a parallel effects loop
Approximately 3 o'clock is an even mix: half dry/half wet
Depth knob: controls the length of the reverb tail, or in other words, the size of the room.
Tone knob: controls the tone of the reverb only. The dry signal is not affected. Counter-clockwise is darker; clockwise is brighter.
Bypass Modes & Selectable Trails:
V4:
Buffered Trail: allows the reverb signal to trail off naturally after the pedal is bypassed
Buffered Normal: cuts off the reverb tail immediately when the pedal is bypassed
Two-stage Bypass: allows the reverb to trail while the footswitch is held down, then cuts off when the footswitch is released
V4tb:
Buffered Trails (same as the v4)
True Bypass without trails
Two-stage Bypass: allows the reverb to trail while the footswitch is held down, then switches to true bypass when the footswitch is released
Connectors: Input, Output, DC In

Technical Data

Input Impedance: 1 MΩ
Input Level: 6 V max
Nominal Input Level (Mix less than 60%): +4 dBu (Line Level)
Nominal Input Level (Mix at 100%): -10 dBV (Instrument Level)
Output Impedance: 1 K Ω
Gain (enabled vs bypass): +/-0.5 dB (dry signal or bypassed)
Frequency Response dry signal: 20 Hz - 20 kHz, +0.1 dB/-0.5 dB (dry signal or bypassed)
Total Harmonic Distortion: < 0.0015 % typical (dry signal or bypassed, 22Hz—22kHz, 1.0 VRMS, 1 kHz)
Signal-to-Noise Ratio: 105 dB typical (22Hz-22kHz, A-weighted)
Power: 9-12V DC Adapter (center negative)
Current Draw: 80 mA buffered, 95 mA true bypass
Dimensions: 2.9 x 4.6 x 2.0" / 73 x 117 x 51 mm
Weight: 7 oz. / 200 g



Source : https://neunaber.net/products/(...)rb-v4


***VENDUE***
Dernier(s) UP : 03/06/2019 18:21, 29/05/2019 18:42, 27/05/2019 22:27, 26/05/2019 11:04, 25/05/2019 10:30
